Module 1: Bot Mitigation Lab¶

In this Lab we want to get familar with all the additional features avaialble for Bot Defense. The goal is to understand the difference between signature-based and JavaScript-based Detection capabilities and mitigation options.

Create Logging Profile¶

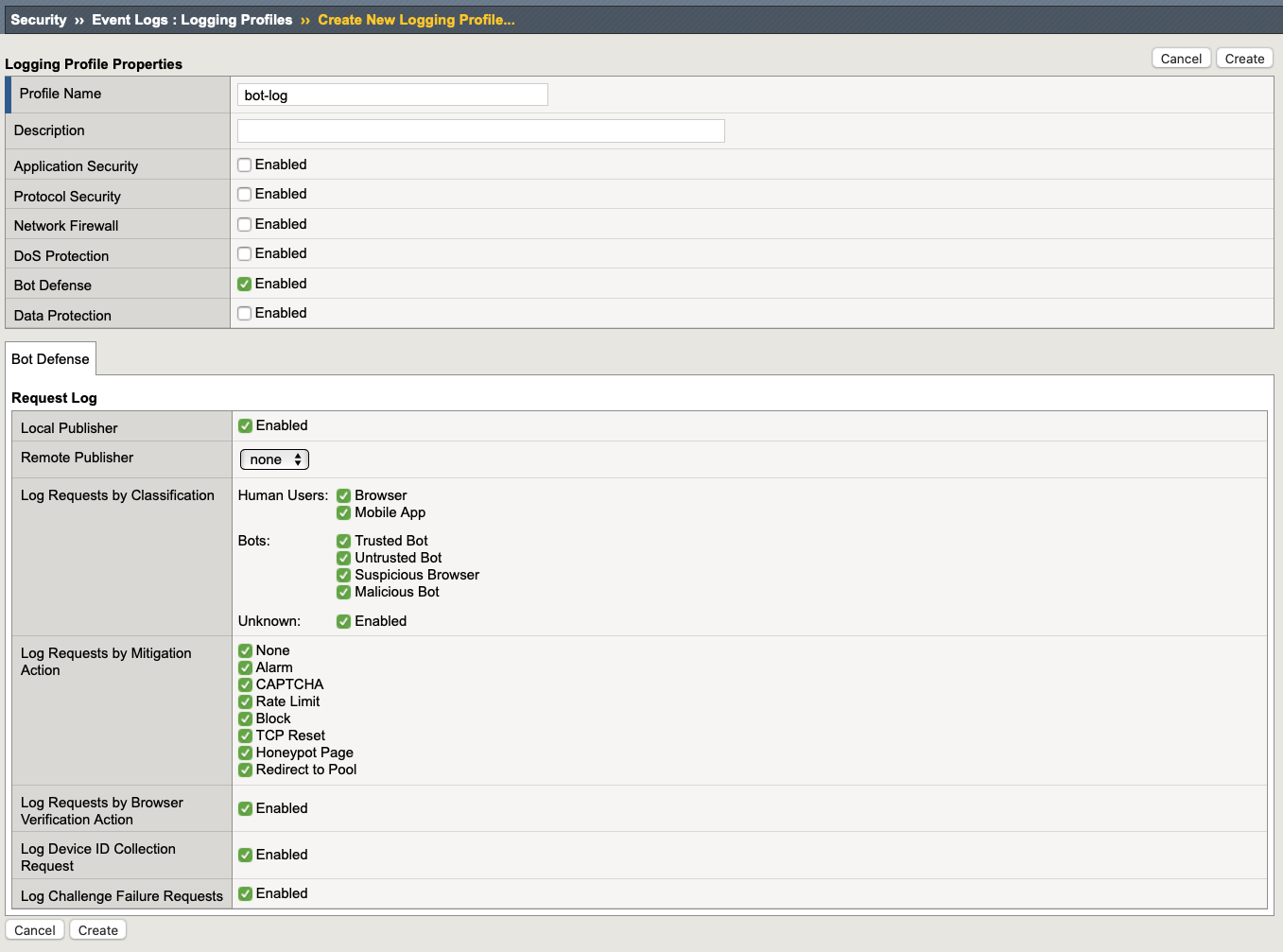

1. Navigate to Security > Event Logs > Logging Profiles and create a new Logging Profile with the settings shown in the screenshot below (local publisher with all options enabled).

2. Give it a name and click create.

Create Bot Defense Profile¶

1. Navigate to Security > Bot Defense > Bot Defense Profiles and click Create.

2. Choose a name (e.g. mybotprofile) and set the Enforcement mode to blocking.



3. Go to Mitigation Settings and change it as seen in the picture below. Leave all other settings as default.



4. Go to Browsers and make sure that Browser Verification and Device ID Mode are disabled (none). Leave all other settings as default.



5. Click Save

Enable Bot Defense and Logging¶

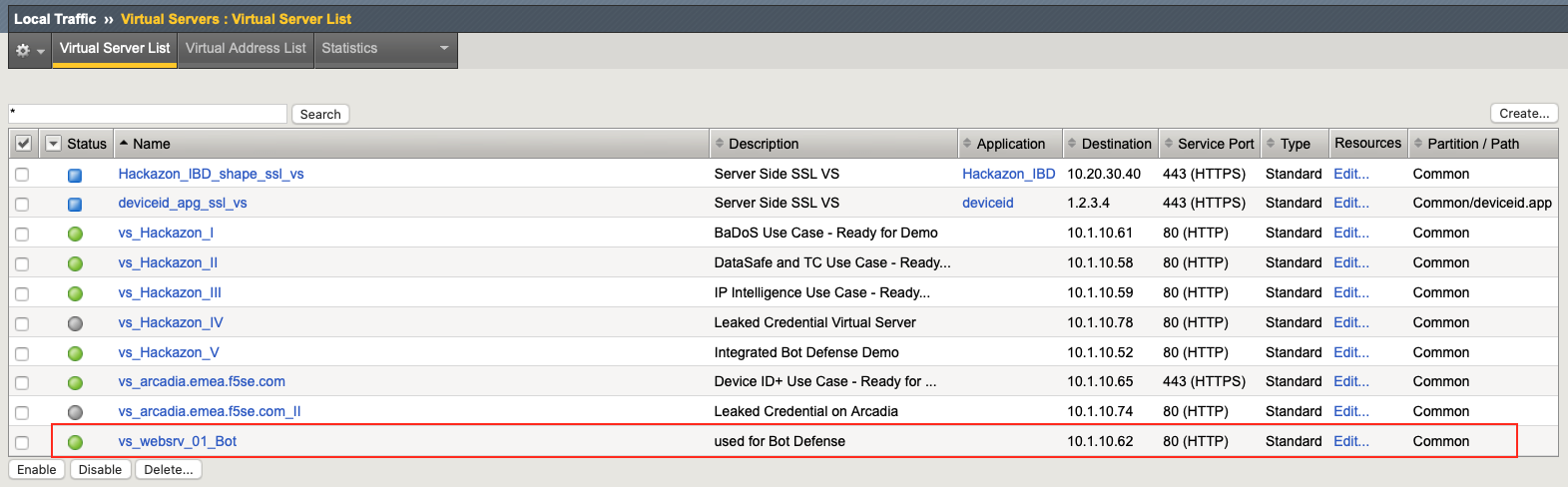

1. Navigate to Security > Overview and select the “vs_websrv_01_Bot” Virtual Server

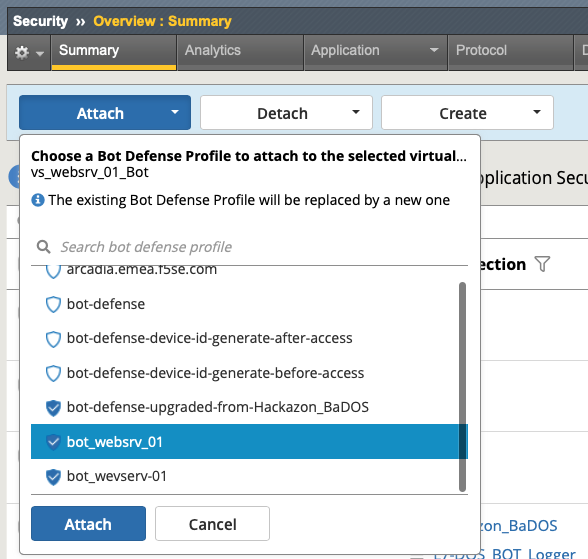

2. Click on Attach and select Bot Defense Profile.



3. Choose the profile you’ve just created and click Attach



4. Do the same for the Logging Profile and use the profile you’ve just created.

Create and review simple Bot-Requests¶

We will use the “win-client” virtual machine provided by this deployment to create simple Bot-Requests.

1. Open the RDP session

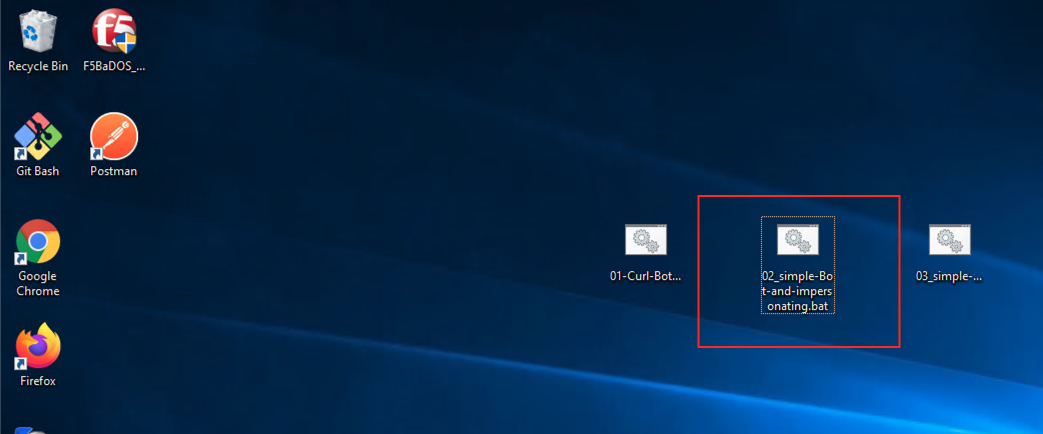

2. Double-click on the “02-Simple-Bot-and-impersonating.bat” batch file located on the desktop. This will generate three different requests.



3. Go back to the TMUI and click on: Security > Event Logs > Bot Defense > Bot Requests

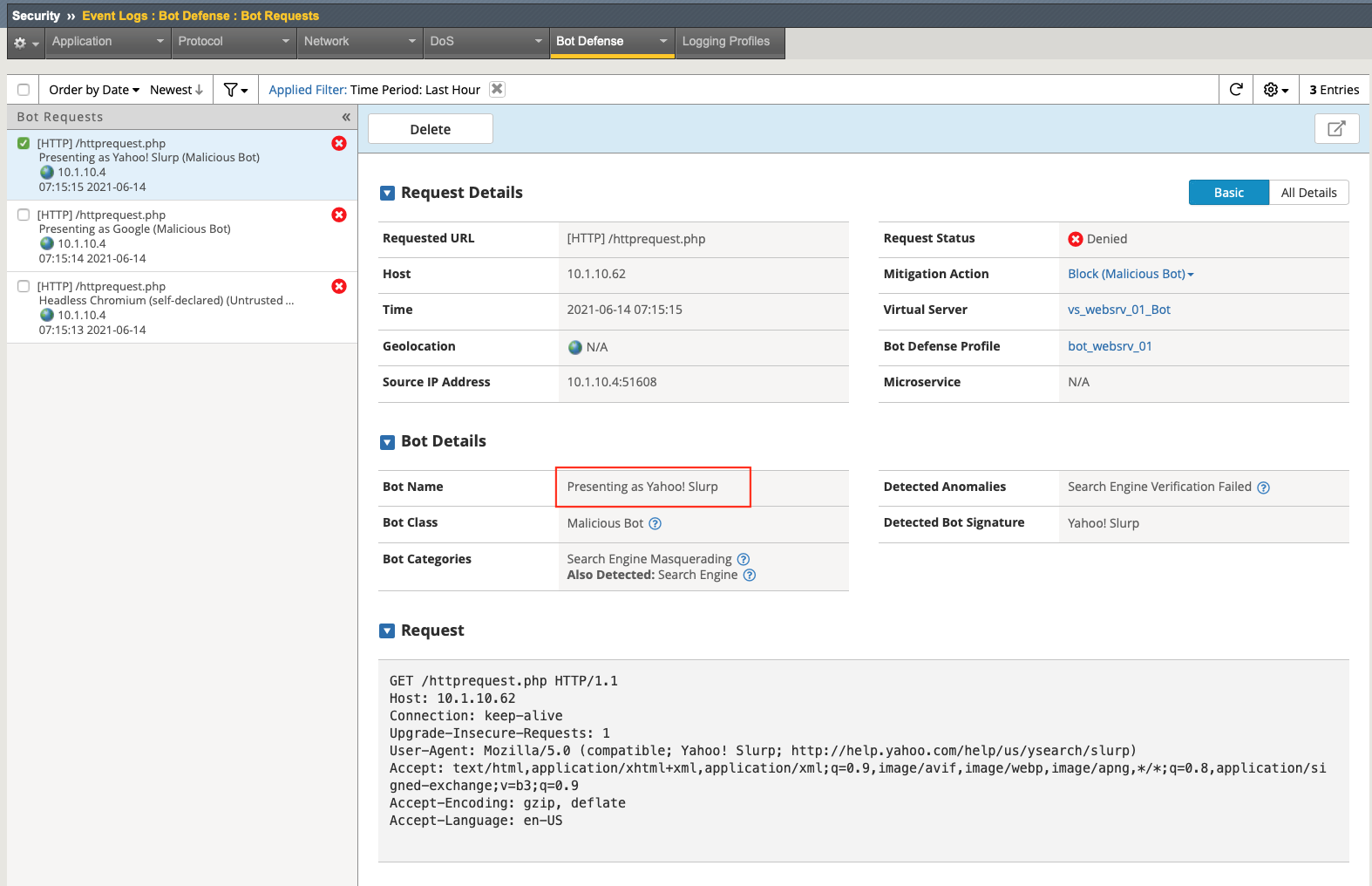

4. Review all (three) logs and see the “block” reason for each request. All requests where classified as malicious bots with the attempt to masquerade as a good bot (i.e. search bot).

   Note

   All requests were made with curl and customized user agents to simulate different requests/attacks.

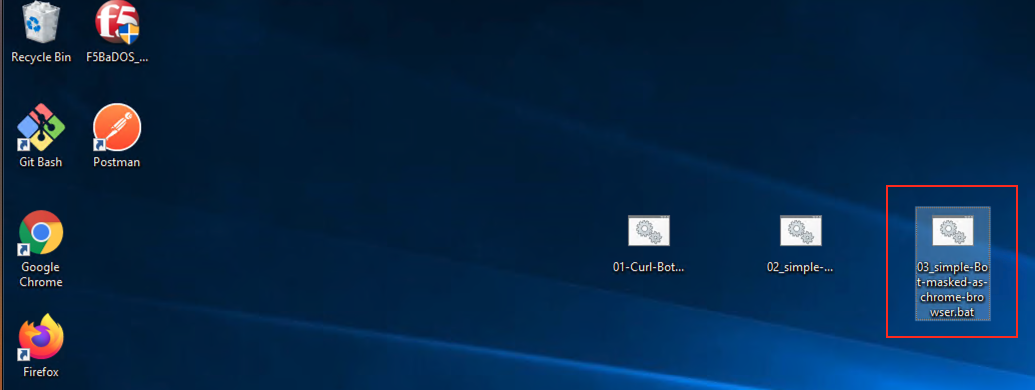

5. Go back to the Windows client and double-click on the “03-Simple-Bot-masked-as-Chrome-Browser.bat” batch file.

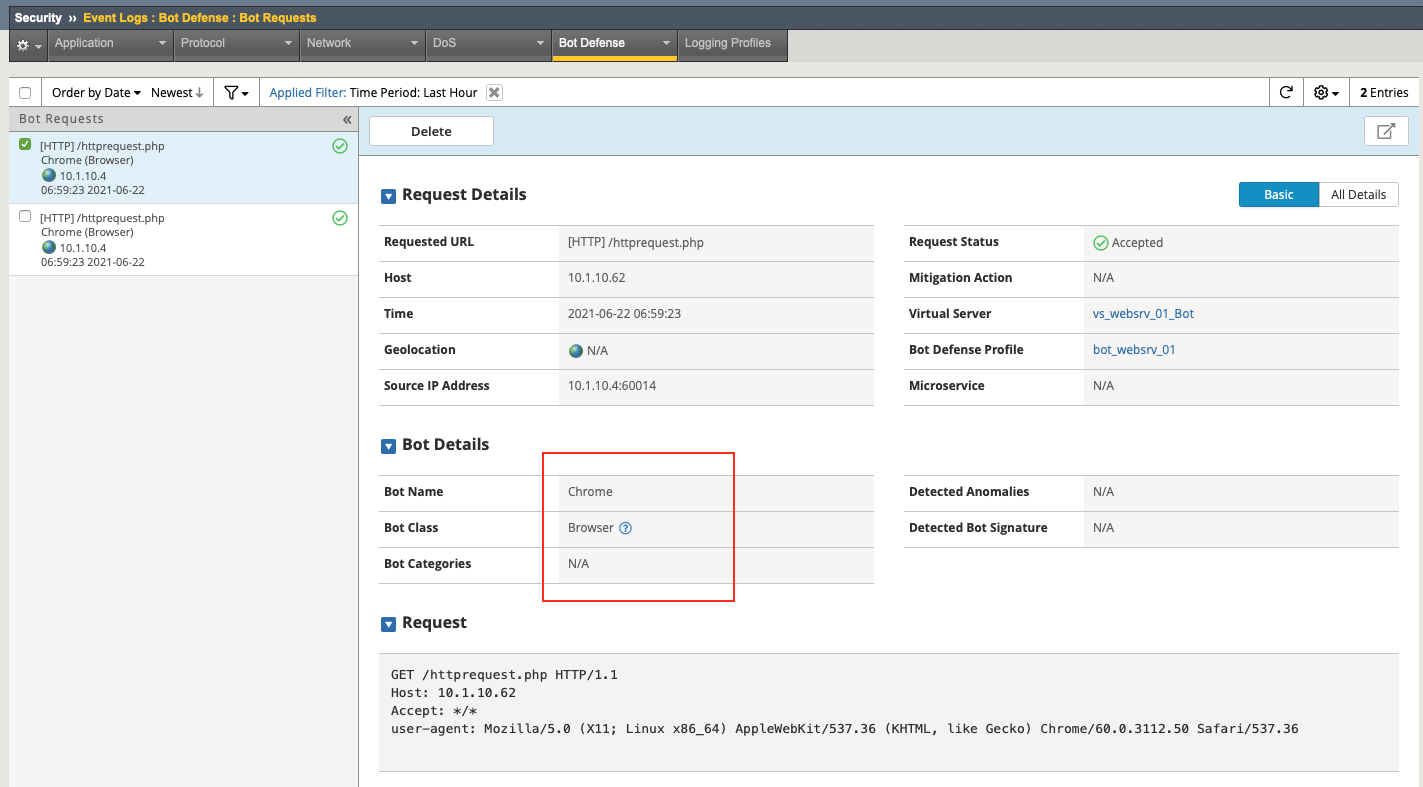

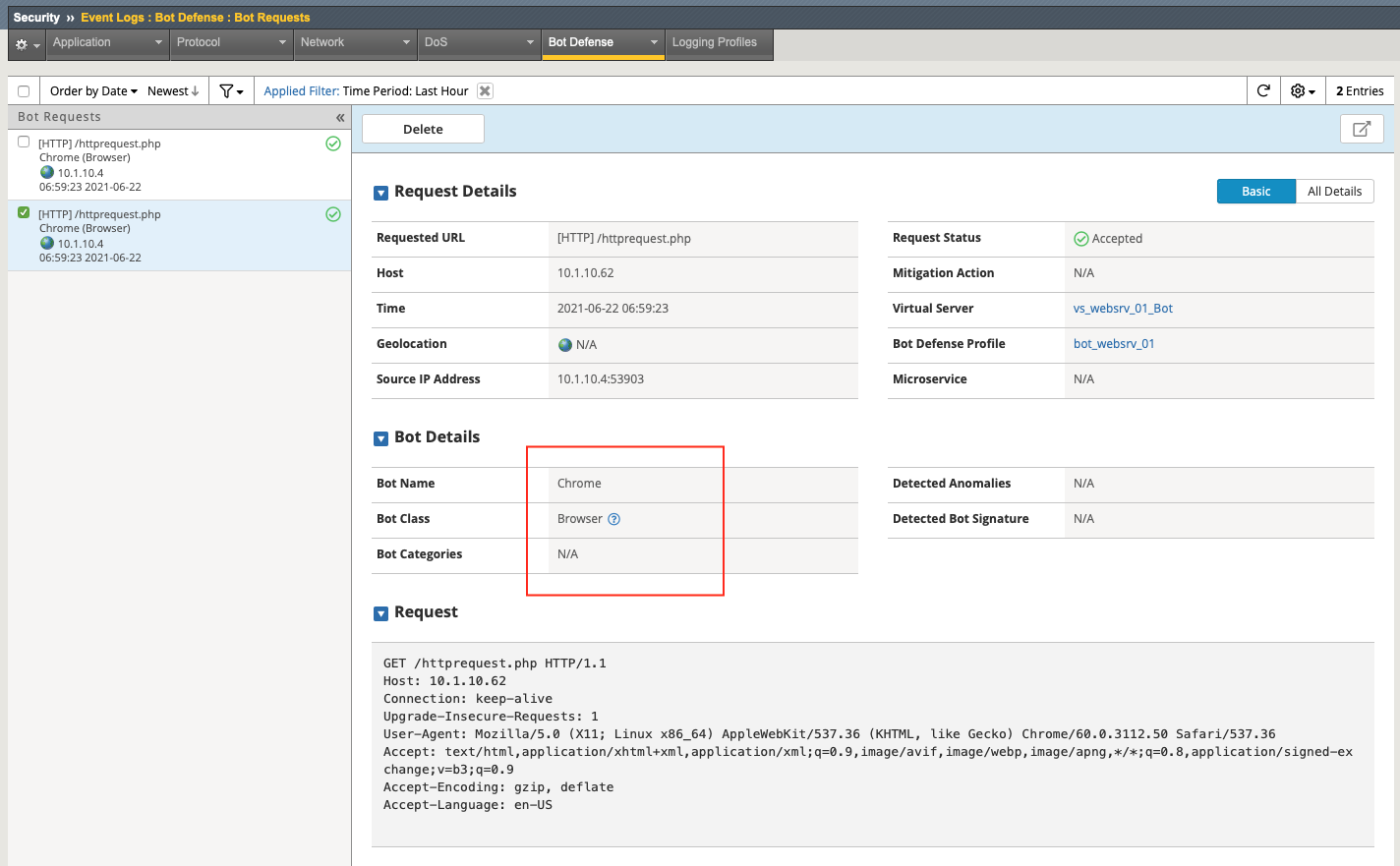

6. Go back to the Eventlog and review the result for this request. As you can see both requests were classified as a valid Browser and were allowed. Lets see how we can get more accurate results.

   Note

   One request was made with curl and a customized user agent, but the other one was made with a headless chrome and a customized user agent to simulate different bots but masked as valid browsers.



7. Go to Security > Bot Defense > Bot Defense Profiles and select our Bot Defense Profile (bot_websrv_01)

8. Within the profile go to Browsers and set “Browser Verification” to Verify Before Access and “Device ID Mode” to Generate Before Access.



9. Click save and go back to the Windows Client RDP Session.

10. Double-click again on the “03-Simple-Bot-masked-as-Chrome-Browser.bat” batch file and review the log entries in the TMUI.

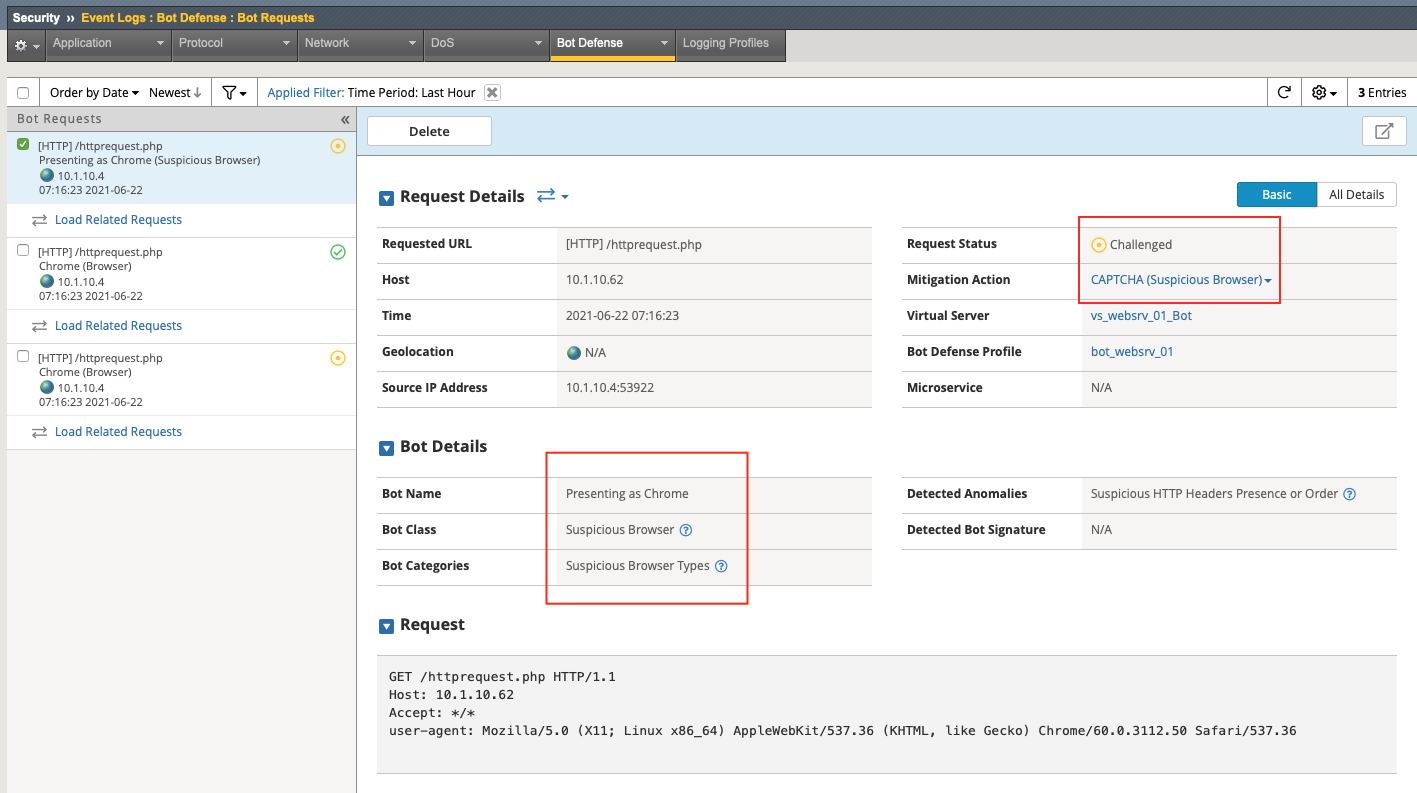

11. As you can see, one request (made with curl) was classified as “suspicious Browser” and the status is “challenged”.

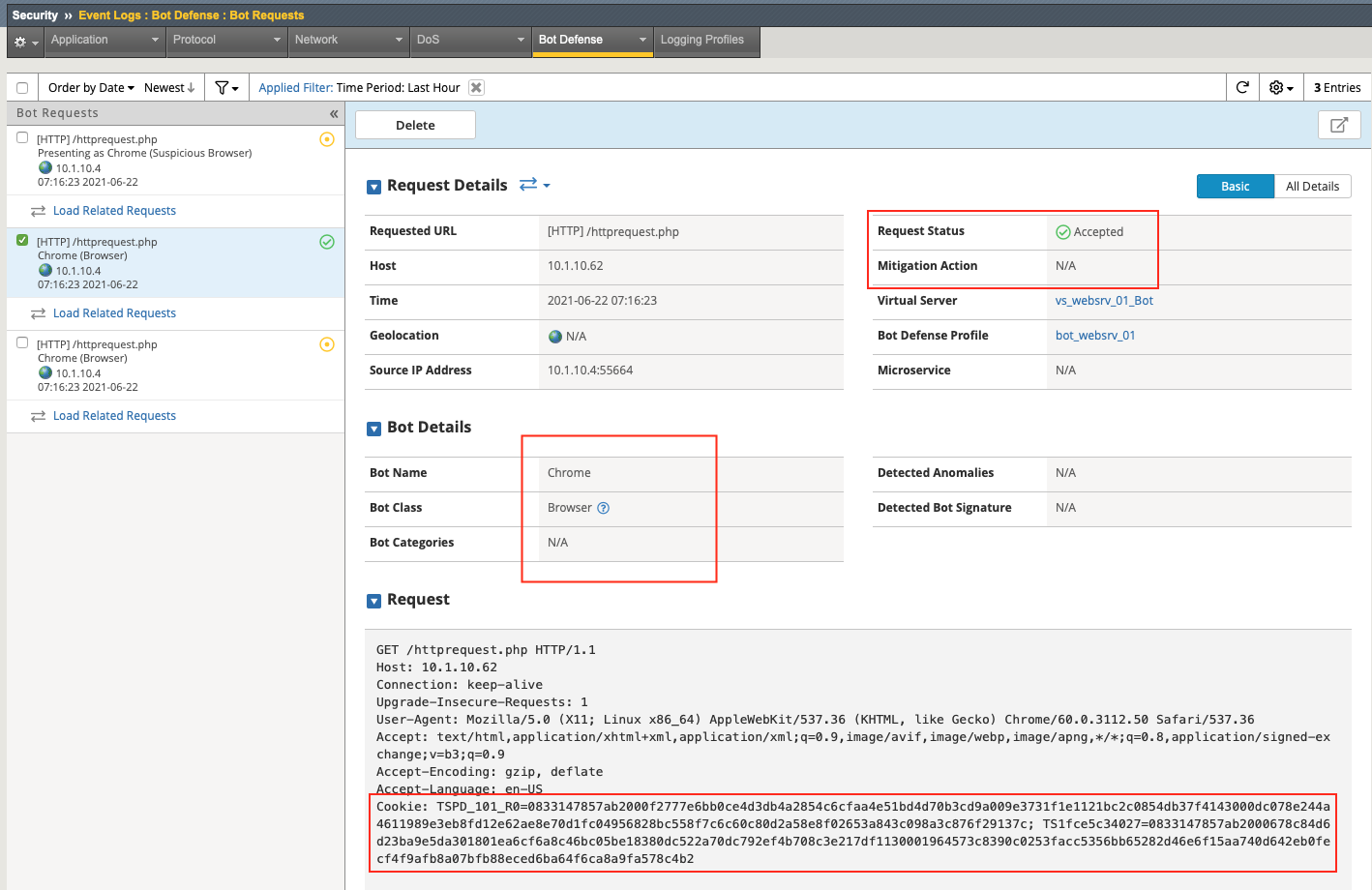

12. The second one (made with headless chrome and a customized user agent) was classified as “Browser” and also challenged. But this time the automated browser was able to solve the JS challenge and the request was allowed.
